Y SERIES THREE-PHASE ASYNCHRONOUS MOTORS



Type Output Current
(A)
Power
factor
Eff
(%)
Speed
(r/min)
Tstart/Tn Ist/In Tmax/Tn
kW HP
Y801-2 0.75 1 1.8 0.84 75 2830 2.2 6.5 2.3
Y802-2 1.1 1.5 2.5 0.86 77 2830 2.2 7 2.3
Y801-4 0.55 0.75 1.5 0.76 73 1390 2.4 6 2.3
Y802-4 0.75 1 2 0.76 74.5 1390 2.3 6 2.3
Y90S-2 1.5 2 3.4 0.85 78 2840 2.2 7 2.3
Y90L-2 2.2 3 4.8 0.86 80.5 2840 2.2 7 2.3
Y90S-4 1.1 1.5 2.8 0.78 78 1400 2.3 6.5 2.3
Y90L-4 1.5 2 3.7 0.79 79 1400 2.3 6.5 2.3
Y90S-6 0.75 1 2.3 0.7 72.5 910 2 5.5 2.2
Y90L-6 1.1 1.5 3.2 0.72 73.5 910 2 5.5 2.2
Y100L-2 3 4 6.4 0.87 82 2870 2.2 7 2.3
Y100L1-4 2.2 3 5 0.82 81 1430 2.2 7 2.3
Y100L2-4 3 4 6.8 0.81 82.5 1430 2.2 7 2.3
Y100L-6 1.5 2 4 0.74 77.5 940 2 6 2.2
Y112M-2 4 5.5 8.2 0.87 85.5 2890 2.2 7 2.3
Y112M-4 4 5.5 8.8 0.82 84.5 1440 2.2 7 2.3
Y112M-6 2.2 3 5.6 0.74 80.5 940 2.2 6 2.2
Y132S1-2 5.5 7.5 11.1 0.88 85.5 2900 2 7 2.3
Y132S2-2 7.5 10 15 0.88 86.2 2900 2 7 2.3
Y132S-4 5.5 7.5 11.7 0.84 85.5 1440 2.2 7 2.3
Y132M-4 7.5 10 15.4 0.85 87 1440 2 7 2.3
Y132S-6 3 4 7.3 0.76 83 960 2 6.5 2.2
Y132M1-6 4 5.5 9.4 0.77 84 960 2 6.5 2.2
Y132M2-6 5.5 7.5 12.6 0.78 85.3 960 2 6.5 2.2
Y160M1-2 11 15 21.8 0.88 87.2 2930 2 7 2.2
Y160M2-2 15 20 29.4 0.88 88.2 2930 2 7 2.2
Y160L-2 18.5 25 35.5 0.89 89 2930 2 7 2.2
Y160M-4 11 15 22.6 0.84 88 1460 2.2 7 2.2
Y160L-4 15 20 30.3 0.85 88.5 1460 2.2 7 2.2
Y160M-6 7.5 10 17 0.78 86 970 2 6.5 2
Y160L-6 11 15 24.6 0.78 87 970 2 6.5 2
Y180M-2 22 30 42.2 0.89 89 2940 2 7 2.2
Y180M-4 18.5 25 35.9 0.86 91 1470 2 7 2.2
Y180L-4 22 30 42.5 0.86 91.5 1470 2 7 2.2
Y180L-6 15 20 31.6 0.81 89.5 970 1.8 6.5 2
Y200L1-2 30 40 56.9 0.89 90 2950 2 7 2.2
Y200L2-2 37 50 69.8 0.89 90.5 2950 2 7 2.2
Y200L-4 30 40 56.8 0.87 92.2 1470 2 7 2.2
Y200L1-6 18.5 25 37.7 0.83 89.8 970 1.8 6.5 2
Y200L2-6 22 30 44.6 0.83 90.2 970 1.8 6.5 2
Y225M-2 45 60 84.4 0.89 91 2970 2 7 2.2
Y225S-4 37 50 69.9 0.87 92.5 1480 2 7 2.2
Y225M-4 45 60 84.7 0.87 92.8 1480 2 7 2.2
Y225M-6 30 40 59.3 0.84 91.5 980 1.8 6.5 2

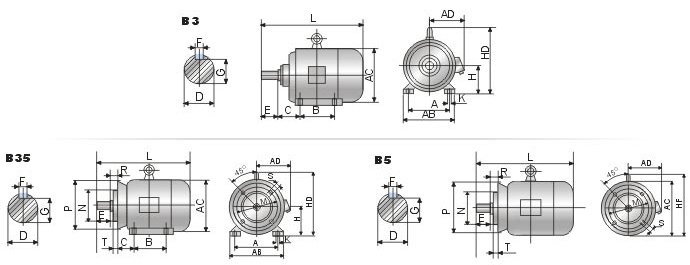

Overall & Installation Dimensions
Frame Size Mounting  Dimensions (mm) Overall Dimensions (mm)
A B C D E F G H K M N P R S T AB AC AD HD HF L
Y80 125 100 50 19 40 6 15.5 80 10 165 130 200 0 12 3.5 165 175 150 175 185 290
Y90S 140 100 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 195 160 195 195 315
Y90L 140 125 56 24 50 8 20 90 10 165 130 200 0 12 3.5 180 195 160 195 195 340
Y100L 160 140 63 28 60 8 24 100 12 215 180 250 0 15 4 205 215 180 245 245 380
Y112M 190 140 70 28 60 8 24 112 12 215 180 250 0 15 4 245 240 190 265 265 400
Y132S 216 140 89 38 80 10 33 132 12 265 230 300 0 15 4 280 275 210 315 315 475
Y132M 216 178 89 38 80 10 33 132 12 265 230 300 0 15 4 280 275 210 315 315 515
Y160M 254 210 108 42 110 12 37 160 15 300 250 350 0 19 5 330 335 265 385 385 605
Y160L 254 254 108 42 110 12 37 160 15 300 250 350 0 19 5 330 335 265 385 385 650
Y180M 279 241 121 48 110 14 42.5 180 15 300 250 350 0 19 5 355 380 285 430 430 670
Y180L 279 279 121 48 110 14 42.5 180 15 300 250 350 0 19 5 355 380 285 430 430 710
Y200L 318 305 133 55 110 16 49 200 19 350 300 400 0 19 5 395 420 315 475 480 775
Y225S 356 286 149 60 140 18 49 225 19 400 350 450 0 19 5 435 475 345 530 535 820
Y225M-2 356 311 149 55 110 16 49 225 19 400 350 450 0 19 5 435 475 345 530 535 815
Y225M-4.6 356 311 149 60 140 18 53 225 19 400 350 450 0 19 5 435 475 345 530 535 845
